Geotechnical Excavation Monitoring in Corpus Christi

Q: How much does geotechnical excavation monitoring cost in Corpus Christi?

460 per week, depending on how many readings per day the design requires and whether we include vibration monitoring. A simple single-family lot monitoring setup with manual crack gauges and periodic survey checks starts at the lower end of that range, while a deep basement with automated total stations, web dashboard access, and daily engineering review moves toward the upper end.

Corpus Christi sits where the Nueces River delta meets the Gulf of Mexico, and that geography shapes every excavation we monitor. The near-surface soils south of SPID and around the port area are mostly Holocene clays and silts with lenses of fine sand, often within three to six feet of the water table. When a contractor opens a cut deeper than eight feet in those conditions, the risk of bottom heave or wall movement isn’t theoretical; we have seen inclinometer deflections shift within a single tidal cycle. Our monitoring program combines automated total stations, vibrating-wire piezometers, and manual crack gauges on adjacent structures so that the engineer of record gets data that reflects what the ground is actually doing. For deeper basement digs where the shoring design relies on tiebacks or rakers, we often pair real-time monitoring with the stratigraphic detail from an spt drilling campaign, because knowing the blow-count profile at the anchor bond zone changes how you interpret lateral movement trends.

In the Coastal Bend, the water table isn’t a static line on a boring log; it breathes with the tides, and your monitoring system has to breathe with it.

Methodology and scope

One of the most common mistakes we see on Corpus Christi job sites is relying solely on a single monitoring method and treating it as a compliance checkbox rather than a decision-making tool. A crew might install four survey prisms on a soldier-pile wall and call it a day, but if nobody is tracking pore pressure behind the lagging, the first warning sign of a problem can be missed until a crack opens in the sidewalk. The soil here doesn’t just push; it also drains slowly, especially the overconsolidated Beaumont clays that appear west of Weber Road. That delayed drainage can build up water pressure over several days of hot, sunny weather before a storm event triggers a sudden drop in effective stress. Our approach layers three independent measurement streams: surface deformation via robotic total station, subsurface displacement with in-place inclinometers, and pore-water pressure from multi-level piezometers. When we see a divergence between those streams, we flag it immediately. On sensitive urban sites where the excavation face is within fifteen feet of an existing building founded on shallow footings, we also recommend supplementing the standard array with a deep excavations stability review that accounts for the actual measured displacement rates, not just the design-stage assumptions.

Local geotechnical context

The Calallen and Flour Bluff areas sit on different depositional packages, but they share one risk factor that catches contractors off guard: the contact between Pleistocene terrace deposits and the underlying Beaumont Formation can act as a perched aquifer. When an excavation intercepts that contact, you may get a sudden inflow of water that doesn’t match the regional groundwater level shown on the geotechnical report. We’ve measured piezometric heads that were two to three feet higher at the contact than in the surrounding clay, simply because the sand stringers had been charged by a rainfall event two weeks earlier. Without real-time piezometer data, that inflow gets interpreted as a construction nuisance rather than a stability concern, and the excavation support system ends up loaded for conditions it wasn’t designed to handle. The City of Corpus Christi’s drainage network also plays a role: many older storm sewers in the uptown area leak into the surrounding fill, and that anthropogenic recharge can keep pore pressures elevated long after the surface has dried.

Technical data

Parameter	Typical value
Total station monitoring frequency (active phase)	Every 30 min to 4 hr, adjustable by threshold
Inclinometer system accuracy	±0.25 mm/m (per ASTM D7299)
Vibrating-wire piezometer range	0-350 kPa, resolution 0.025% FS
Crack gauge resolution	0.01 mm, temperature-compensated
Typical groundwater depth in central Corpus Christi	1.2 - 3.5 m below grade
Data delivery platform	Web-based dashboard with SMS and email alerts
Reporting standard	ASTM D7299, IBC Section 3306, ASCE 7-22 Ch. 26

Related services

Automated Total Station Monitoring

We install survey prisms on the shoring wall, adjacent buildings, and ground surface, then track their position continuously with a robotic total station. The system computes 3D displacement vectors and triggers alerts when a user-defined rate or cumulative threshold is exceeded. This is the first line of defense for occupied buildings next to a cut.

In-Place Inclinometer and Piezometer Arrays

Vertical inclinometer casings are grouted into boreholes behind the excavation face, and we lower a string of MEMS-based sensors to record lateral deflection at half-meter intervals. Multi-level vibrating-wire piezometers are installed in the same or adjacent boreholes to separate the effect of groundwater pressure from soil creep.

Crack and Vibration Monitoring for Adjacent Structures

Before the shovel hits the ground, we document existing cracks on neighboring properties with high-resolution photography and install triaxial crack gauges. During excavation and compaction, we also deploy geophones to measure peak particle velocity if blasting or vibratory driving is planned, keeping readings within the limits set by the Corpus Christi building official.

Regulatory framework

ASTM D7299 – Standard Practice for Verifying Performance of Inclinometers, IBC 2021 Section 3306 – Protection of Adjoining Property During Excavations, ASCE 7-22 Chapter 26 – Wind Loads (for monitoring tower and prism stability), ASTM D1586 – Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling

Questions and answers

How much does geotechnical excavation monitoring cost in Corpus Christi?

What triggers an alert in your monitoring system?

We configure two levels of alert for each instrument. The first is a rate-based trigger: for example, if a prism moves more than 0.5 inches in a 24-hour period, the system sends an email notification to the project team. The second is a cumulative threshold, typically set at 50% of the allowable movement specified in the shoring design. Piezometer alerts are tied to a pressure threshold that corresponds to a reduction in effective stress below the factor of safety required by the geotechnical engineer. Every alert includes the raw data, a plot showing the trend over the previous seven days, and a brief commentary from the monitoring technician.

How long should monitoring continue after the excavation is backfilled?

We typically recommend keeping the inclinometers and piezometers active for at least two weeks after backfill reaches final grade, because the pore pressure regime around the excavation takes time to return to equilibrium. In the fine-grained soils common across Corpus Christi, that equilibration can stretch to three or four weeks if the backfill was placed during a wet period. Crack gauges on adjacent structures should remain in place until a post-construction condition survey confirms no further movement, and we usually schedule that survey 30 days after the shoring is removed.

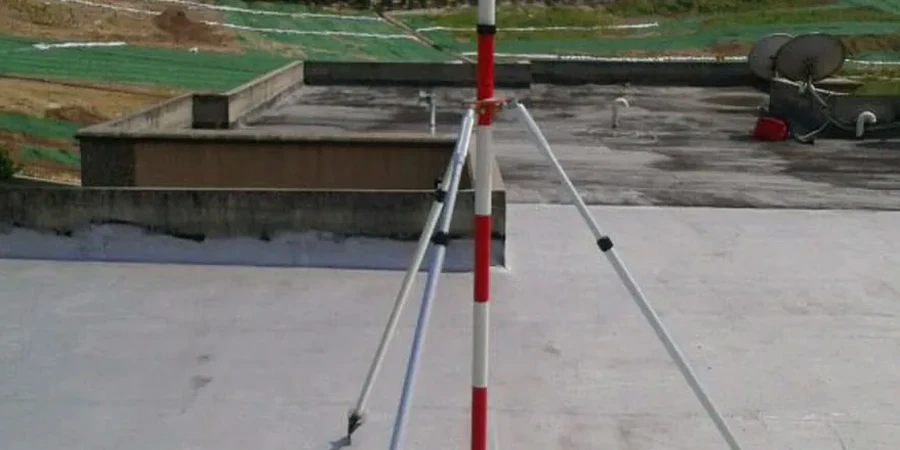

Geotechnical Excavation Monitoring in Corpus Christi – Coastal Soils, Real-Time Data
